11.

Most materials have the refractive index, n > 1. So, when a light ray from the air enters a naturally occurring material, then by Snell's law, $\frac{ \sin \theta_{1}}{\sin \theta_{2}}=\frac{n_{2}{n_{1}}$,  it is understood that the refracted ray bends towards the normal. But it never emerges on the same side of the normal as the incident ray. According to electromagnetism, the refractive index of the medium is given by the relation  , $n=\left(\frac{c}{v}\right)=\pm\sqrt{\epsilon_{r} \mu_{r}}$ ,  when c is the speed of electromagnetic waves in vacuum, v its speed in the medium,  $\epsilon_{r}$and $\mu_{r}$ are the relative permittivity and permeability of the medium respectively.

In normal materials, both $\epsilon_{r}$  and $\mu_{r}$ are positive, implying positive n for the medium. When both $\epsilon_{r}$ and $\mu_{r}$  are negative, one must choose the negative root of n. Such negative refractive index materials can now be artificially prepared and are called meta-materials. They exhibit significantly different optical behaviour, without violating any physical laws. Since n is negative, it results in a change in the direction of propagation of the refracted light. However, similar to normal materials, the frequency of light remains unchanged upon refraction even in meta-materials.

Choose the correct statement


A) The speed of light in the meta-material is v=c|n|

B) The speed of light in the meta-materials v=$\frac{c}{|n|}$

C) The speed of light in the meta-material is v=c

D) The wavelength of the light in the meta-material ($\lambda_{m})$ is given by $\lambda_{m}=\lambda_{air}|n|$, where $\lambda_{air}$ is the wavelength of the light in air



12.

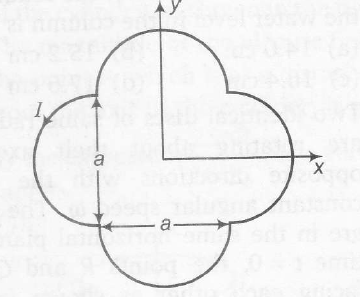

A loop carrying current / lies in the x-y plane as shown in the figure. The unit vector k is coming out of the plane of the paper. The magnetic moment of the current loop is



A) $a^{2}Ik$

B) $\left(\frac{\pi}{2}+1\right)a^{2}Ik$

C) $-\left(\frac{\pi}{2}+1\right)a^{2}Ik$

D) $(2 \pi +1)a^{2}Ik$



13.

A student is performing the experiment of the resonance column. The diameter of the column tube is 4 cm. The frequency of the tuning fork is  512 Hz. The air temperature is $38^{0}C$  in which the speed of sound is 336 m/s. The zero of the meter scale coincides with the top end of the resonance column tube. When the first resonance occurs, the reading of the water level in the column is


A) 14.0 cm

B) 15.2 cm

C) 16.4 cm

D) 17.6 cm



14.

Consider a disc rotating in the horizontal plane with a constant angular speed $\omega$ about its centre O. The disc has a shaded region on one side of the diameter and an unshaded region on one the other side as shown in the figure. When the disc is in the orientation as shown, two pebbles P and Q are simultaneously projected at an angle towards R. The velocity of the projection is in the y-z plane
and is the same for both pebbles with respect to the disc. Assume that (i) they land back on the disc before the disc has completed $\frac{1}{8}$ rotation,(ii) their  range  is less than half the disc radius, and (iii) $\omega$  remains constant throughout Then,



A) P lands in the shaded region and Q in the unshaded region

B) P lands in the unshaded region and Q in the shaded region

C) both P and Q land in the unshaded region

D) both P and Q land in the shaded region



15.

Two moles of ideal helium gas are in a  rubber balloon at $30^{0}C$. The balloon is fully expandable and can be assumed to require no energy in its expansion. The temperature of the gas in the balloon is slowly changed to $35^{0}C$. The amount of heat  required  in raising  the temperature is nearly (take  R=8.31 J/mol-K)


A) 62 J

B) 104J

C) 124 J

D) 208J
